ADAS PRO+ V2

Passenger Vehicle ADAS Calibration Equipment

Home » Browse Our Products » ADAS Calibration Tools » ADAS PRO+ V2

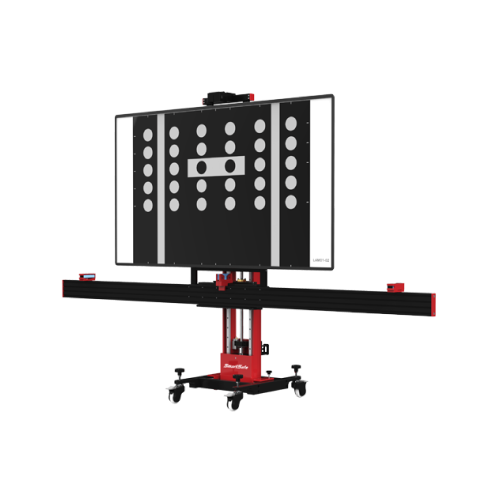

About ADAS PRO+ V2

ADAS PRO+ V2 is a professional-grade passenger car ADAS calibration device equipped with a 75-inch high-definition LCD screen and a digital display of the front camera target. It can provide professional ADAS calibration solutions for automobile manufacturers, large automobile repair shops, and automotive glass shops.
  • Realize digital display of front camera targets, eliminate the installation steps of front camera target head, greatly improve ADAS calibration efficiency, save target storage space, and reduce target maintenance and transportation costs;
  • Equipped with a 75-inch high-definition LCD screen, 4K resolution, the digital target restores the physical target in 1:1 ratio;
  • Supports horizontal angle, front and back, left and right fine-tuning, electric lifting and manual fine-tuning of the beam, and can complete centring and parallelism in 1 minute;
  • Support LDW/ACC/AVM/NVS/BSD/RCW ADAS system calibration;
  • The software provides graphic tutorials and step-by-step guidance;
  • Support the output of comparison reports before and after calibration.
What Can Be Solved in Your Shop
ADAS PRO+ V2 is an ultra-high-precision professional ADAS system calibration equipment that meets the needs of multi-brand and multi-system calibration at the same time, and provides more comprehensive ADAS calibration services for repair shops.
Target digitalization
Supports more than 30 front camera targets.
Equipment fine-tuning
Supports fine-tuning of front-to-back and left-to-right angles.
Equipment lifting
Supports manual and electric lifting modes, and the laser rangefinder located height.
Centring and parallelism
The laser rangefinder is used to achieve parallel positioning of the equipment and the vehicle, and the line laser is used to achieve center positioning of the equipment and the vehicle.
Level adjustment
Observe the level bubble and adjust the base knob to achieve level adjustment of the equipment.
Video introduction to ADAS PRO+ ADAS Calibration Tool.

Tab Content

This is a basic text element.

Tab Content

This is a basic text element.

Tab Content

This is a basic text element.
Enquire Now

ADAS Targets

How to Choose ADAS Calibration Targets, factors to consider are:

① Vehicle type: confirm your brand and model

② Calibration types and space required by the target

③ Target cost: some targets are expensive and need to be factored into your decision-making

④ Shop conditions: workstation size, workstation lighting, workstation floors

By considering these factors, you will be able to make more favorable choices about how to select your ADAS targets!

Vehicle Coverage

EuropeanAsianAmerican
Mercedes-BenzKiaGM
BMWHyundaiFord
AudiToyotaChrysler
VolkswagenLexusBuick
Land RoverHondaCadilac
JaguarAcuraChevrolet
VolvoNissanDodge
FiatInfinitiJeep
OpelMitsubishiLincoln
SeatSubaru
SkodaSuzuki
RenaultDaihatsu
CitroenMazda
SmartJAC
MiniSGMW
PeugeotBaic
PorscheBYD
RomeoHaval
Chery
Lynk&Co
